Precision-Engineered Towers from LeMar
LeMar’s robust catwalk support towers feature fabrication and precision detail second to none.
That includes bucket elevator support towers over 220’, as big as 24’x40’ or simple towers, in a range of standard sizes in any combination or configuration, customized to your needs.
Catwalk support towers include free-standing four-legged and two-legged braced in a range of standard sizes in any combination or configuration, plus any custom product, small or large, designed to your unique requirements.
Our revolutionary patented slot & tab system provides unmatched consistency for more efficient fabrication, increased quality, and exceptional connection strength.
Utilizing this technology along with an experienced and robust engineering and design team, all of LeMar’s designs utilize optimized connections to fit all types of project needs.
More

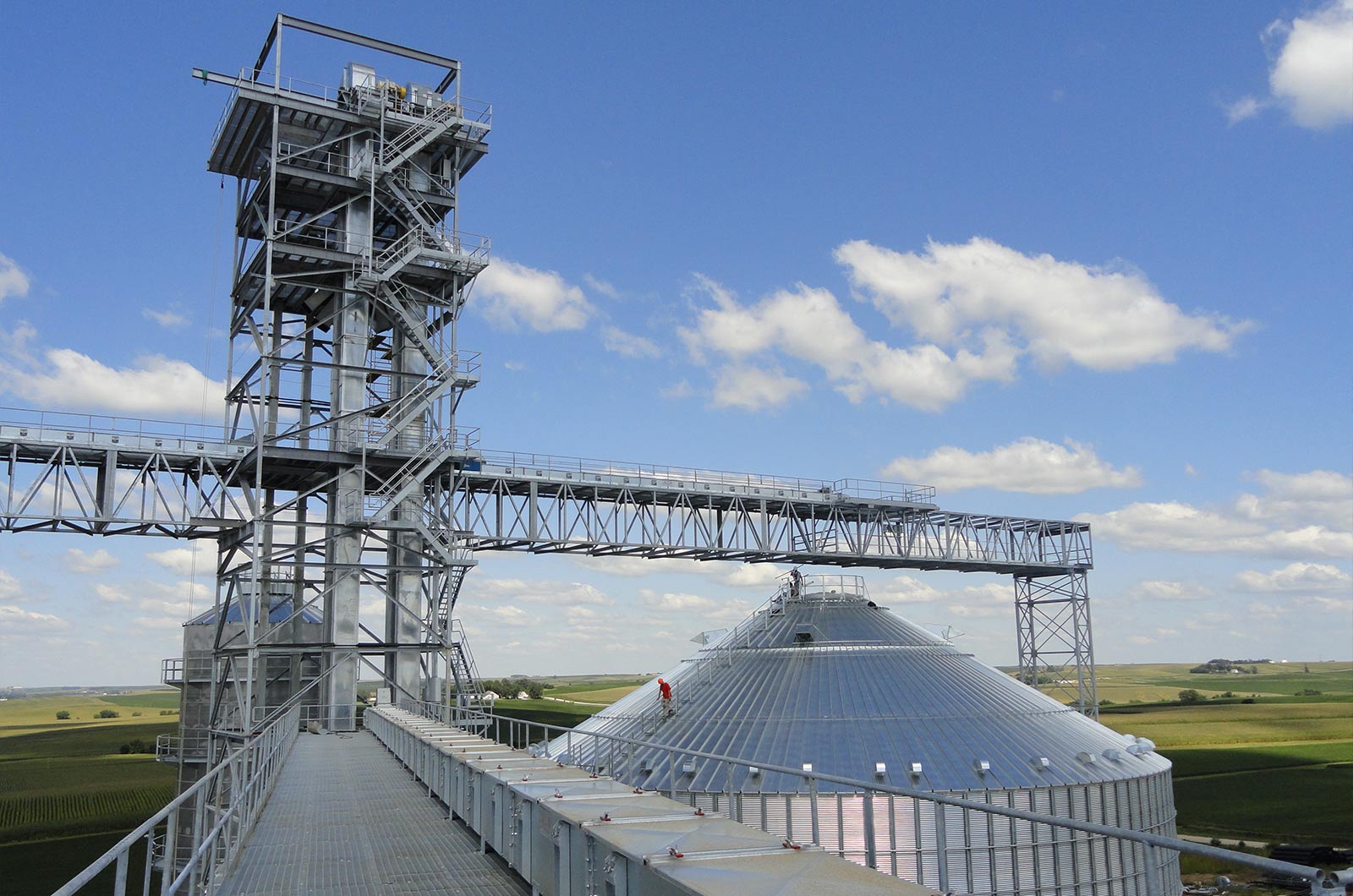

Quality and attention to detail make our bucket elevator support towers stand out from the rest.
We’re talking towers over 220′. Four, six and eight column towers that come in as big as 24′ x 40′, or simple towers that get the job done. They come in a range of standard sizes in any combination or configuration from 8′ to 24′ (8’x8′, 12’x12′, 12’x16′, 24’x20′, etc.), plus any custom product, small or large, built to your personalized specs.
All are available with hot dip galvanized, powder coated or painted industrial enamel finishes. We’ll custom fabricate bucket elevator support towers & stairways to order, plus we offer a range of options that let you customize to meet your operation’s specific needs.
Choose from a range of options such as:
- Access bracing
- Catwalk support beams
- Internal and cantilevered platforms
- Ladder & cage systems
- Wraparound stairs
- Switchback stairs
- Custom fabricated super structures at base
LeMar’s robust catwalk support towers are engineered to any height, wind speed or seismic zone. Add access bracing for more versatility plus the ability to incorporate conveyors and spouting.
- Standard sizes in any combination or configuration (4’x8′, 4’x12′, 8’x12′, 10’x10′, etc.)
- Custom product, small or large, built to your needs
- Hot dip galvanized, powder coated or painted industrial enamel finishes
- Patented slot & tab system for easy assembly and exceptional connection strength
Free-Standing, Four-Legged Catwalk Support Towers
- Standard sizes from 4’x8′ to 24′
- Custom sizes fabricated to order
- Patented slot & tab system for easy assembly and exceptional connection strength
Two-Legged Braced Catwalk Support Towers
- Custom engineered to sit on bin foundation
- Adjustable sidewall support bracket fastens to bin stiffener
Bucket Elevator Towers and Stairs
| Styles | Standard Sizes | Sections | Bracing | Finishes |
|---|---|---|---|---|
| Bucket Elevator & Stair Towers | 8 to 20 feet Sq. (2.4 to 6.1 m) Sq. | 5, 10, 15 or 20 ft. (1.5, 3, 4.6 or 6.1 m) | X-Brace Standard Optional: V-Brace Inverted | Hot-dip Galvanized Steel, Powder-Coat Paint, Industrial Enamel Paint |
| Small Support Towers 2 or 4 Legs | 16 inch to 6 ft. Sq. (406 mm to 1.8 m) Sq. Bolted or Welded | 5, 10, 15 or 20 ft. (1.5, 3, 4.6 or 6.1 m) | X-Brace Standard Optional: V-Brace Inverted | Hot-dip Galvanized Steel, Powder-Coat Paint, Industrial Enamel Paint |
| Custom Designs for Any Application |
